Chapter 3 有限差分法
3.1 泰勒展开式(Taylor Series)
在数学中，泰勒级数（英語：Taylor series）用无限项连加式——级数来表示一个函数，这些相加的项由函数在某一点的导数求得。泰勒级数是以于1715年发表了泰勒公式的英國数学家布魯克·泰勒（Sir Brook Taylor）来命名的。
泰勒展开式的基本形式：
\[\begin{equation} f(x) = \sum_{k=0}^n \frac{f^{(n)}(0) }{n!}( x) ^{n} \tag{3.1} \end{equation}\]

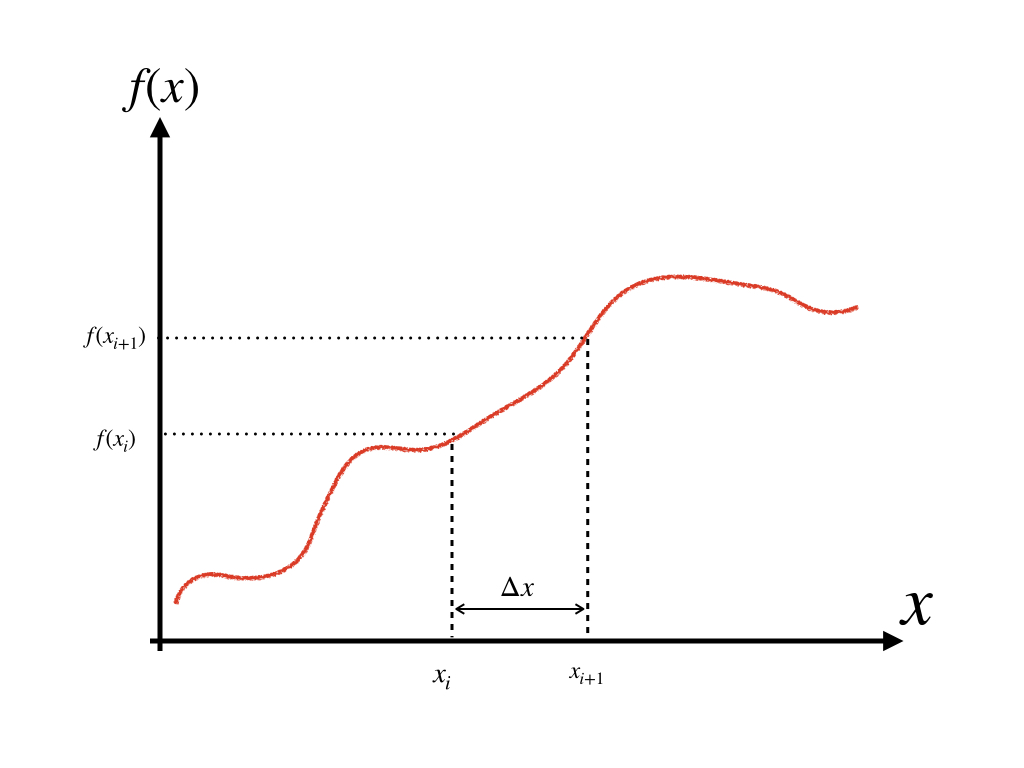

根据泰勒展开式，通过\(f(x)\)和其任意阶的导数，可以获得任意\(\Delta x\)值下的函数值\(f(x + \Delta x)\) ，即:
\[\begin{equation} f(x+\Delta x) = f(x) + \frac{f'(x)}{1!} \Delta x + \frac{f^{''}(x)}{2!} \Delta x^2 + \frac{f^{'''}(x)}{3!} \Delta x^3+\dotsb + \frac{f^{(n)}(x) }{n!}( \Delta x) ^{n} \tag{3.2} \end{equation}\]
或者在\(-\Delta x\)位置，可写为：
\[\begin{equation} f(x-\Delta x) = f(x) - \frac{f'(x)}{1!} \Delta x + \frac{f^{''}(x)}{2!} \Delta x^2 - \frac{f^{'''}(x)}{3!} \Delta x^3+\dotsb + \frac{f^{(n)}(x) }{n!}(- \Delta x) ^{n} \tag{3.3} \end{equation}\]
以上公式也可以写为： \[\begin{equation} u_{i+1} = u_{i} + \frac{u^{'}_{i}}{1!} \Delta x + \frac{u^{''}_{i}}{2!} \Delta x^2 + \frac{u^{'''}_{i}}{3!} \Delta x^3+\dotsb + \frac{u^{(n)}_{i} }{n!}( \Delta x) ^{n} \tag{3.4} \end{equation}\]
\[\begin{equation} u_{i-1} = u_{i} - \frac{u^{'}_{i}}{1!} \Delta x + \frac{u^{''}_{i}}{2!} \Delta x^2 - \frac{u^{'''}_{i}}{3!} \Delta x^3+\dotsb + \frac{u^{(n)}_{i} }{n!}(- \Delta x) ^{n} \tag{3.5} \end{equation}\]
在此，我们需要引入截断误差（truncation error）的概念，数学表达为\(O()\)。 \(O(2)\)和\(O(3)\)分别表示为在泰勒展开式上的二阶和三阶导数上的误差。截取误差的阶数越高，误差越小。
\[O(1) = \frac{u^{''}_{i}}{2!} \Delta x^2+\frac{u^{'''}_{i}}{3!} \Delta x^3+\frac{u^{(4)}_{i}}{4!} \Delta x^4+\dotsb + \frac{u^{(n)}_{i} }{n!}( \Delta x) ^{n}\]
\[O(2) = \frac{u^{'''}_{i}}{3!} \Delta x^3+\dotsb + \frac{u^{(n)}_{i} }{n!}( \Delta x) ^{n}\] \[O(3) = \frac{u^{(4)}_{i}}{4!} \Delta x^4+\dotsb + \frac{u^{(n)}_{i} }{n!}( \Delta x) ^{n}\]
何种情况下，泰勒展开式的截断误差为0？

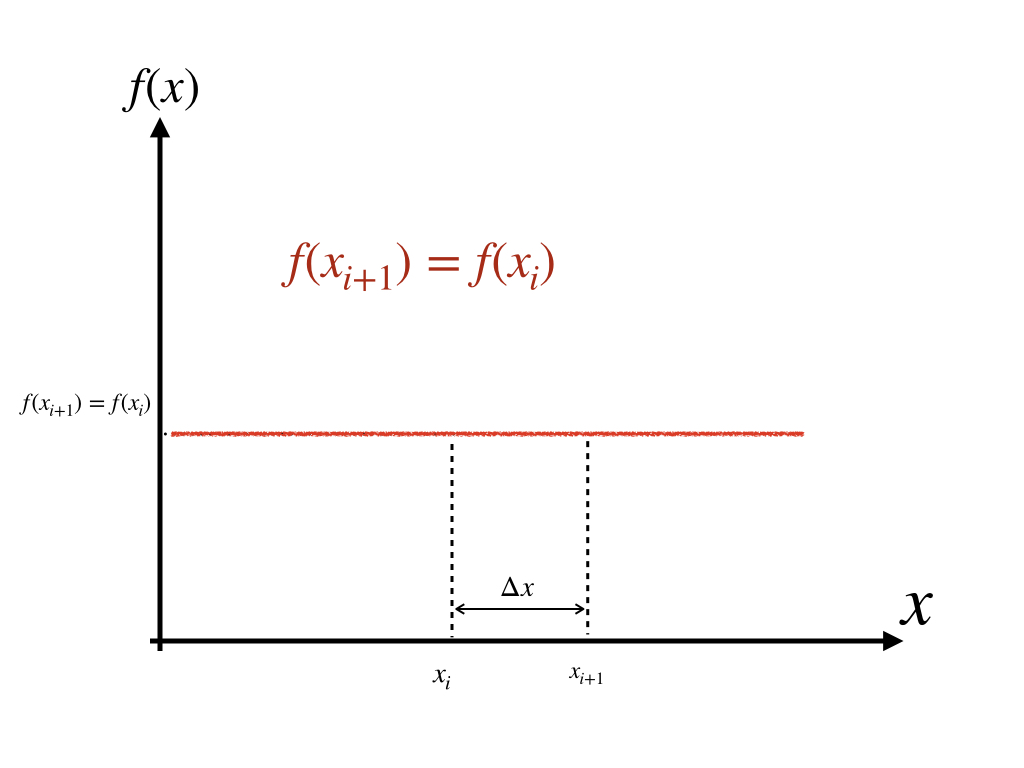

- \(O(0) = 0\) 时，意味着：\(f(x+\Delta x) = f(x)\)。则该函数为\(f(x) = C\), \(C\)为常数。 如图：

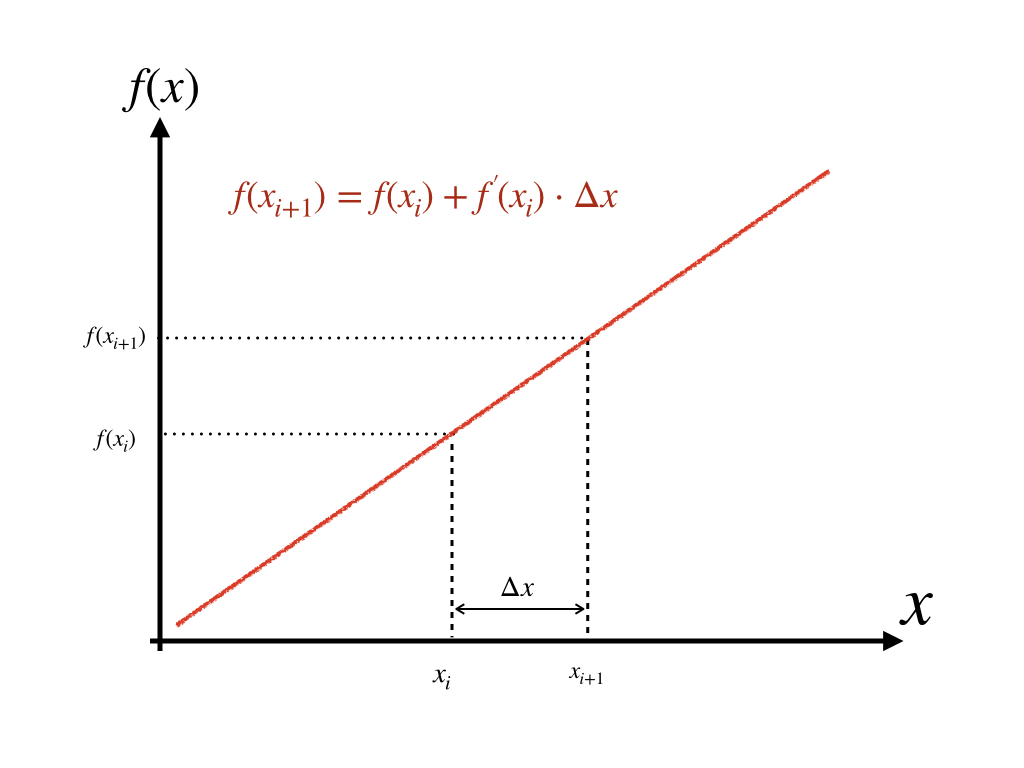

- \(O(1) = 0\) 时，意味着：\(f(x+\Delta x) = f(x) + f^{'}(x) \cdot \Delta x\)。则该函数为\(f(x) = ax + b\)。 如图：
如何依据泰勒级数，得到函数的一阶和二阶导数？
3.1.1 一阶导数
3.1.1.1 向前估计 (Forward Approximation)

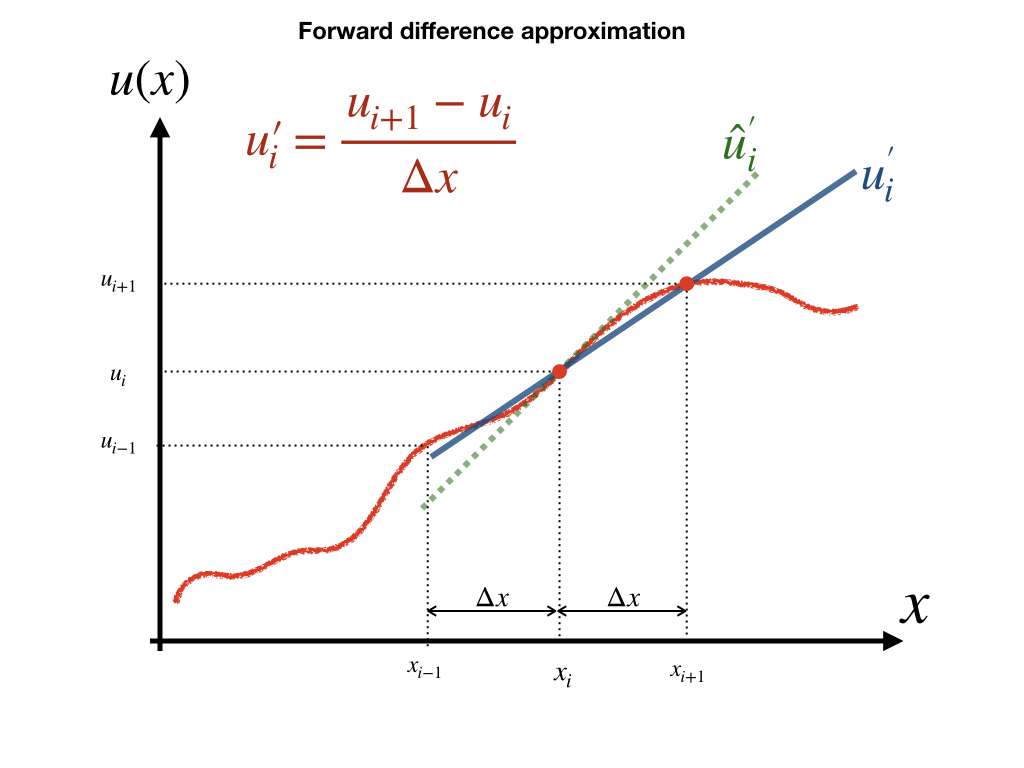

采纳一阶截断误差，我们可将公式(3.2)写为： \[\begin{equation} f(x+\Delta x) = f(x) + \frac{f'(x)}{1!} \Delta x + O(1) \end{equation}\] 则： \[\begin{equation} f'(x) = \frac {f(x+\Delta x) - f(x) } {\Delta x} \tag{3.6} \end{equation}\] 或者 \[\begin{equation} u'_{i} = \frac {u_{i+1} - u_{i} } {\Delta x} \tag{3.6} \end{equation}\]
注：公式(3.6)隐含了\(O(1)\)的误差。
3.1.1.2 向后估计 (Backward Approximation)

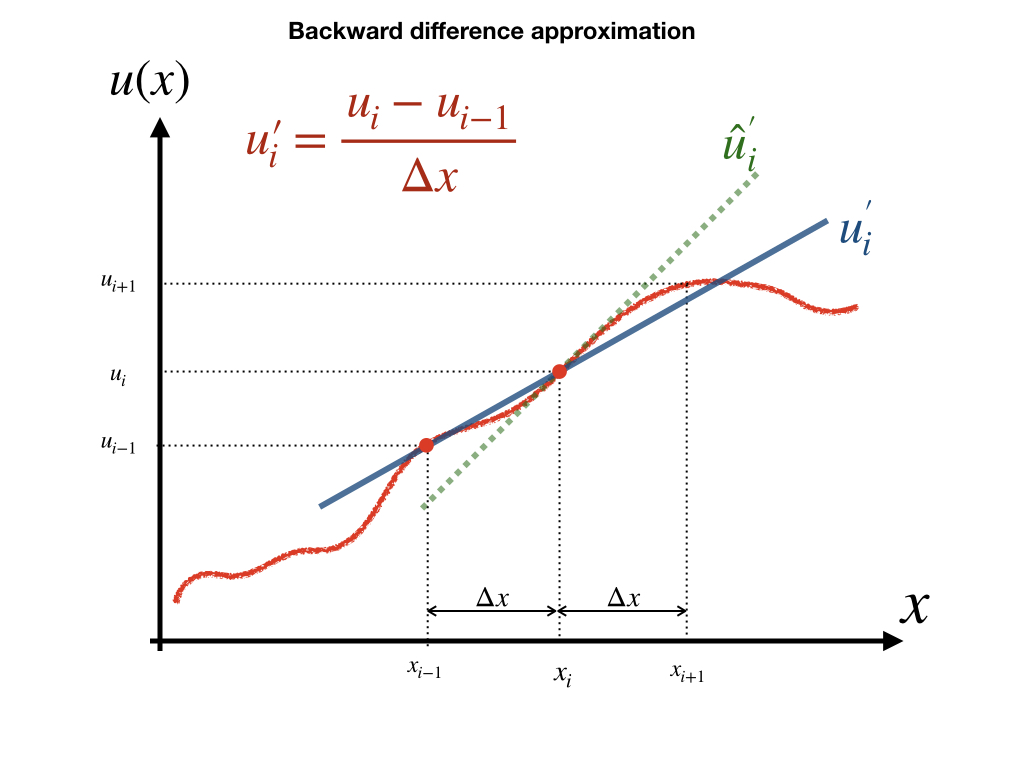

采纳一阶截断误差，我们可将公式(3.3)写为： \[\begin{equation} f(x-\Delta x) = f(x) - \frac{f'(x)}{1!} \Delta x + O(1) \end{equation}\] 则： \[\begin{equation} f'(x) = \frac {f(x) -f(x-\Delta x) } {\Delta x} \tag{3.7} \end{equation}\] 或者 \[\begin{equation} u'_{i} = \frac { u_{i} - u_{i-1}} {\Delta x} \tag{3.7} \end{equation}\]
注：公式(3.7)隐含了\(O(1)\)的误差。
3.1.1.3 中心估计 (Central Approximation)

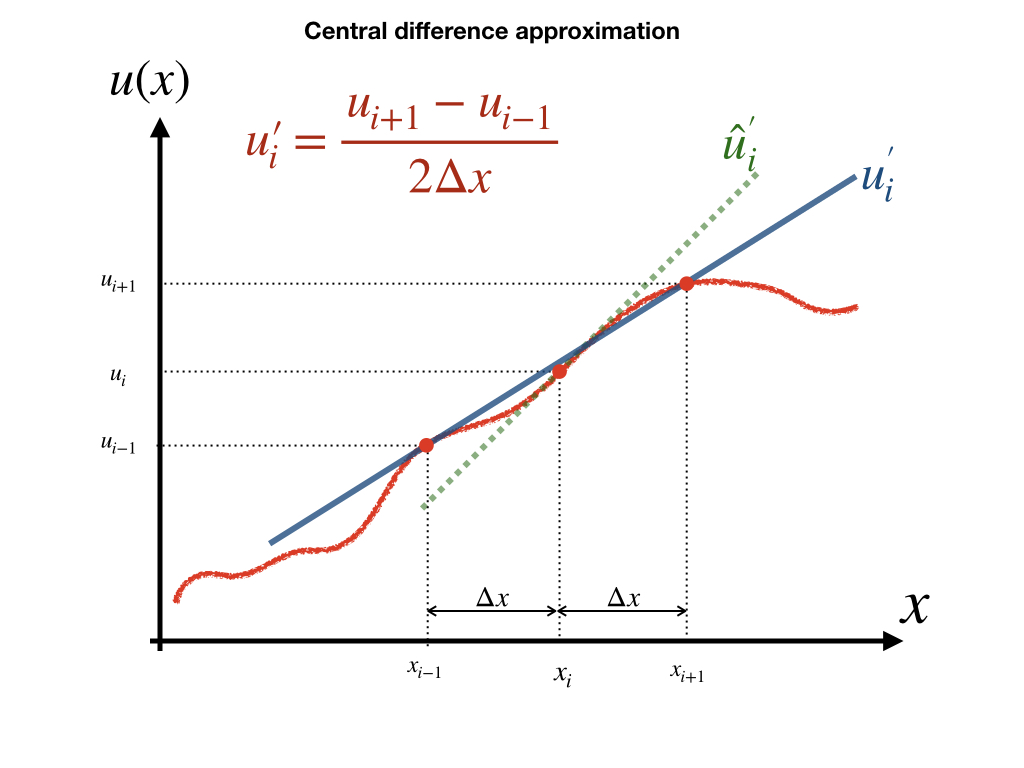

中心估计算法中，我们将从公式(3.2)减去公式(3.3)，得到： \[ f(x+\Delta x) - f(x-\Delta x) = 0 + 2 * \frac{f'(x)}{1!} \Delta x + 0 + 2 * \frac{f^{'''}(x)}{3!} + ... \]
截断误差由以上公式右边的第四项（三阶导数）开始，则该公式的截取误差为\(O(2)\)，即二阶精度的截取误差，公式表达为： \[ f(x+\Delta x) - f(x-\Delta x) = 0 + 2 * \frac{f'(x)}{1!} \Delta x + 0 + O(2) \] 可得到二阶精度的一阶导数的中心估计： \[\begin{equation} f'(x) = \frac {f(x+\Delta x) -f(x-\Delta x) } {2\Delta x} \tag{3.8} \end{equation}\] 或者 \[\begin{equation} u'_{i} = \frac { u_{i+1} - u_{i-1}} {2\Delta x} \tag{3.8} \end{equation}\]
公式(3.8)隐含了\(O(2)\)的误差，同时(3.6)和(3.7)都隐含了\(O(1)\)的误差。
3.1.2 二阶导数
\[\begin{equation} f(x+\Delta x) + f(x-\Delta x) = 2 \cdot f(x) + 0 + 2 \cdot \frac{f^{''}(x)}{2!} \Delta x^2 + 0 + 2 \cdot \frac{f^{(4)}(x)} {4!} \Delta x^4 + \dotsb \tag{3.9} \end{equation}\]
公式(3.9)来自公式 (3.2)和(3.3)的相加，三阶导数项在相加过程中为零，因此我们截取其三阶截取误差，则公式(3.9)可写为： \[\begin{equation} f(x+\Delta x) + f(x-\Delta x) = 2f(x) + f^{''}(x) \Delta x^2 + O(3) \tag{3.10} \end{equation}\]

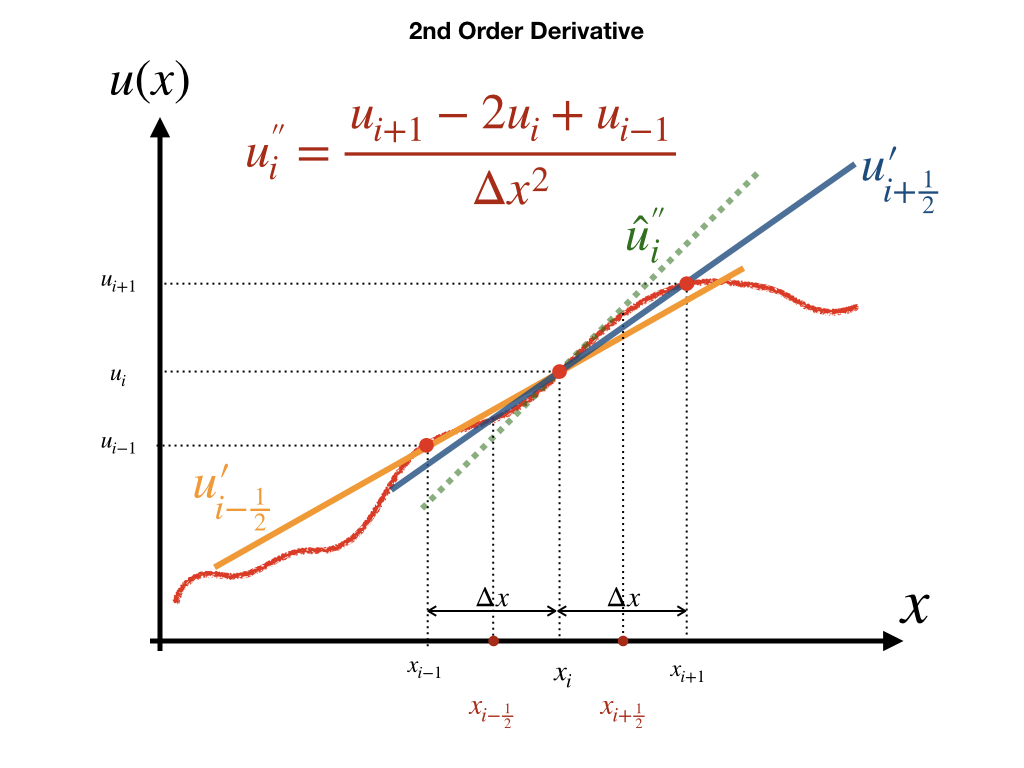

根据公式(3.10)，我们可获得函数\(f(x)\)在\(x\)位置的二阶导数为：
\[\begin{equation} f^{''}(x) = \frac { f(x+\Delta x) - 2f(x) + f(x-\Delta x) } { \Delta x^2 } + O(3) \tag{3.11} \end{equation}\]
当移除其三阶截断误差\(O(3)\)后，我们得到近似的二阶导数：
\[\begin{align} f^{''}(x) & \approx \frac {1}{ \Delta x } \left( \frac{ f(x+\Delta x) - f(x) }{ \Delta x } + \frac{ f(x) - f(x-\Delta x) } { \Delta x } \right) \\ & \approx \frac { f(x+\Delta x) - 2f(x) + f(x-\Delta x) } { \Delta x^2 } \tag{3.12} \end{align}\]
将公式一般化，我们可写为以下形式：
\[\begin{align} u^{''}_{i} &\approx \frac {1}{ \Delta x } \left( \frac{u_{i+1} - u_{i}}{\Delta x} - \frac{u_{i} - u_{i-1}}{\Delta x} \right) \\ & \approx \frac { u_{i+1} - 2u_{i} + u_{i-1} } { \Delta x^2 } \\ \tag{3.12} \end{align}\]
3.2 构建数值方法
Example 3.1 一根100\(cm\)长的铁棍，初始温度25 \(^\circ C\)，在其左右两边分别持续施加100\(^\circ C\)和\(50 ^\circ C\)的温度。 求解：任意时刻铁棍的温度分布。
参考信息：
问题描述

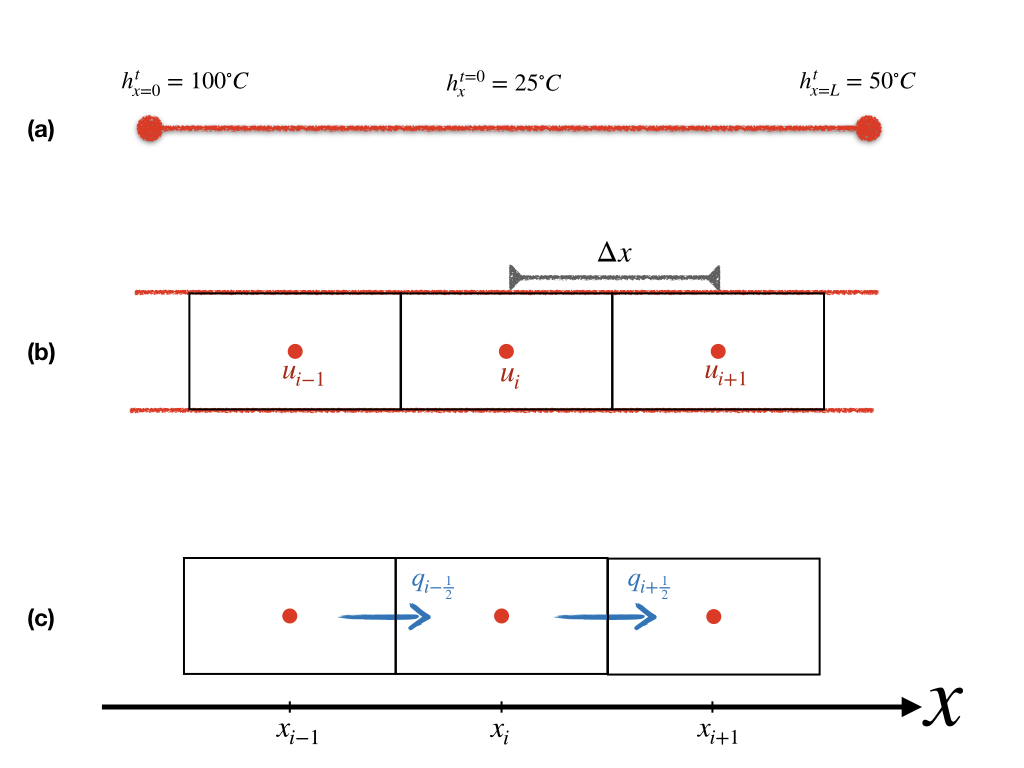

空间微分，如图。
物理定理
能量守恒：
能量变化 = 能量流入 - 能量流出 \[ \Delta E = Q _{in} - Q _{out} \]控制方程
\[ 通量 = \frac {量}{单位时间 \cdot 单位面积} \]
- \(k\) - 热传导率[\(W m^{-1} K ^{-1}\)]。
- \(c\) - 比热容(specific heat capacity)[\(J {kg}^{-1} K ^{-1}\)]。
- \(\rho\) - 密度[\({kg} m^{-3}\)]。
- \(A\) - 截面积[\(m^2\)]。
- \(D\) - 热力学扩散度（Thermal diffusivity）\(D = \frac{k}{\rho c}\) [\(m^2 s^{-1}\)]。
\[ \rho * c * \Delta x * A * \Delta u = q_{in} * A * \Delta t - q_{out} * A * \Delta t\] 两边同时除以\(\rho c \Delta x A\)，得到 \[\frac {\Delta u}{\Delta t} = \frac{1}{\rho c} \frac{q_{in} - q_{out}}{\Delta x}\] 以上公式当\(\Delta x\)趋近与0，\(\Delta t\)趋近于0时，得到微分形式： \[\frac {\partial u}{\partial t} = \frac{1}{\rho c} \frac{\partial q} {\partial x}\]
\[q = k \frac{\partial u}{\partial x}\] 则得到其控制方程： \[\begin{equation} \begin{aligned} \frac {\partial u}{\partial t} &= \frac{1}{\rho c} \frac{\partial q} {\partial x} \\ &= \frac{1}{\rho c} \frac{k \frac{\partial u}{\partial x} } {\partial x} \\ &= D\frac{\partial } {\partial x} \left(\frac{\partial u}{\partial x} \right) \end{aligned} \end{equation}\]
令\(D=\frac{k}{\rho c}\)，单位[$ m s^{-2}$]，则最终控制方程写为
\[\begin{equation} \frac {\partial u}{\partial t} =D\frac{\partial ^2 u} {\partial x^2} \tag{3.13} \end{equation}\]
时空离散化
由一阶泰勒级数可知，控制方程(3.13)左边可写为： \[\frac {\partial u}{\partial t} = D\frac{u^{t}_{i} - u^{t-1}_{i} }{\Delta t} + O(1)\] 控制方程(3.13)左边可写为： \[\begin{equation} \frac{\partial ^2 u} {\partial x^2} =\frac{u^{t-1}_{i+1} - 2u^{t-1}_{i} + u^{t-1}_{i-1} }{\Delta x} + O(3) \end{equation}\] 或者 \[\begin{equation} \frac{\partial ^2 u} {\partial x^2} =\frac{u^{t}_{i+1} - 2u^{t}_{i} + u^{t}_{i-1} }{\Delta x} + O(3) \end{equation}\]
此时，方程左边在时间尺度上具有一阶截取误差\(O(1)\)，方程右边在空间尺度上具有三阶截断误差\(O(3)\)。省去误差项，离散化后控制方程写为： \[\begin{equation} \frac{u^{t}_{i} - u^{t-1}_{i} }{\Delta t} = D \frac{u^{t-1}_{i+1} - 2u^{t-1}_{i} + u^{t-1}_{i-1} }{\Delta x ^2} \tag{3.14} \end{equation}\] 或者 \[\begin{equation} \frac{u^{t}_{i} - u^{t-1}_{i} }{\Delta t} = D \frac{u^{t}_{i+1} - 2u^{t}_{i} + u^{t}_{i-1} }{\Delta x ^2} \tag{3.15} \end{equation}\]
求解
3.3 显式求解法
显式求解法以公式(3.14)作为起点，该公式可变形为： \[ u^{t}_{i} - u^{t-1}_{i} = \frac{D \Delta t}{{\Delta x}^2} \left( u^{t-1}_{i+1} - 2u^{t-1}_{i} + u^{t-1}_{i-1} \right) \] 令\(\alpha = \frac{D \Delta t}{\Delta x^2}\), \(\beta = 1 - 2\alpha\)，整理以上公式可得：
\[\begin{equation} \begin{aligned} u^{t}_{i} - u^{t-1}_{i} &= \alpha \left( u^{t-1}_{i+1} - 2u^{t-1}_{i} + u^{t-1}_{i-1} \right) \\ u^{t}_{i} &= \alpha u^{t-1}_{i+1} + (1- 2\alpha) u^{t-1}_{i} + \alpha u^{t-1}_{i-1} \\ u^{t}_{i} &= \alpha u^{t-1}_{i+1} + \beta u^{t-1}_{i} + \alpha u^{t-1}_{i-1} \end{aligned} \end{equation}\]
将以上公式应用于离散点上，
| 点号 \(i\) | 公式 |
|---|---|
| 1 | 边界条件: \(u^{t}_{1} = U_{0}\) |
| 2 | \(u^{t}_{2} = \alpha u^{t-1}_{3} + \beta u^{t-1}_{2} + \alpha u^{t-1}_{1}\) |
| 3 | \(u^{t}_{3} = \alpha u^{t-1}_{4} + \beta u^{t-1}_{3} + \alpha u^{t-1}_{2}\) |
| 4 | \(u^{t}_{4} = \alpha u^{t-1}_{5} + \beta u^{t-1}_{4} + \alpha u^{t-1}_{3}\) |
| 5 | \(u^{t}_{5} = \alpha u^{t-1}_{6} + \beta u^{t-1}_{5} + \alpha u^{t-1}_{4}\) |
| … | … |
| i-1 | … |
| i | \(u^{t}_{i} = \alpha u^{t-1}_{i+1} + \beta u^{t-1}_{i} + \alpha u^{t-1}_{i-1}\) |
| i+1 | … |
| … | … |
| n-2 | \(u^{t}_{n-2} = \alpha u^{t-1}_{n-1} + \beta u^{t-1}_{n-2} + \alpha u^{t-1}_{n-3}\) |
| n-1 | \(u^{t}_{n-1} = \alpha u^{t-1}_{n} + \beta u^{t-1}_{n-1} + \alpha u^{t-1}_{n-2}\) |
| n | 边界条件: \(u^{t}_{n} = U_{L}\) |
由此我们得到\(n\)个算式，可转换为矩阵形式：
\[\begin{equation} \begin{bmatrix} u_{1}^{t} \\ u_{2}^{t} \\ u_{3}^{t} \\ u_{4}^{t} \\ \dots \\ u_{i}^{t} \\ \dots \\ u_{n-3}^{t} \\ u_{n-2}^{t} \\ u_{n-1}^{t} \\ u_{n}^{t} \end{bmatrix} = \begin{bmatrix} {\color{red}1} & 0 & 0 & 0 & \dots & 0 & 0 & 0 & 0\\ \alpha & ~\beta~ & \alpha & 0 & \dots & 0 & 0 & 0 & 0\\ 0 & \alpha & ~\beta~ ~& \alpha & \dots & 0 & 0 & 0 & 0\\ \dots &\dots &\dots &\dots &\dots &\dots &\dots &\dots &\dots \\ 0 & 0 & \dots & \alpha & ~\beta~& \alpha & \dots & 0 & 0\\ \dots &\dots &\dots &\dots &\dots &\dots &\dots &\dots &\dots \\ 0 & 0& 0 & 0 & \dots & \alpha~& ~\beta~ & \alpha & 0 \\ 0 & 0& 0 & 0 & \dots & 0 & \alpha & ~\beta~ & \alpha \\ 0 & 0& 0 & 0 & \dots & 0 & 0& 0 &{\color{red}1} \end{bmatrix} \begin{bmatrix} U_{0} \\ u_{2}^{t-1} \\ u_{3}^{t-1} \\ u_{4}^{t-1} \\ \dots \\ u_{i}^{t-1} \\ \dots \\ u_{n-3}^{t-1} \\ u_{n-2}^{t-1} \\ u_{n-1}^{t-1} \\ U_{L} \end{bmatrix} \end{equation}\]
更简洁的方式，可写为：
\[\begin{equation} \begin{bmatrix} u_{1} \\ u_{2} \\ u_{3} \\ u_{4} \\ \dots \\ u_{i} \\ \dots \\ u_{n-3} \\ u_{n-2} \\ u_{n-1} \\ u_{n} \end{bmatrix} ^{t} = \begin{bmatrix} {\color{red}1} & 0 & 0 & 0 & \dots & 0 & 0 & 0 & 0\\ \alpha & ~\beta~ & \alpha & 0 & \dots & 0 & 0 & 0 & 0\\ 0 & \alpha & ~\beta~ ~& \alpha & \dots & 0 & 0 & 0 & 0\\ \dots &\dots &\dots &\dots &\dots &\dots &\dots &\dots &\dots \\ 0 & 0 & \dots & \alpha & ~\beta~& \alpha & \dots & 0 & 0\\ \dots &\dots &\dots &\dots &\dots &\dots &\dots &\dots &\dots \\ 0 & 0& 0 & 0 & \dots & \alpha~& ~\beta~ & \alpha & 0 \\ 0 & 0& 0 & 0 & \dots & 0 & \alpha & ~\beta~ & \alpha \\ 0 & 0& 0 & 0 & \dots & 0 & 0& 0 &{\color{red}1} \end{bmatrix} \begin{bmatrix} U_{0} \\ u_{2} \\ u_{3} \\ u_{4} \\ \dots \\ u_{i} \\ \dots \\ u_{n-3} \\ u_{n-2} \\ u_{n-1} \\ U_{L} \end{bmatrix} ^{t-1} \end{equation}\]
下一时刻(\(t\))的变量组成的向量\(x\)由一个矩阵\([A]\)乘以已知的前一时刻(\(t-1\))的向量\(b\)获得，即：。 \[ x = [A] * b \] 由已知变量的矩阵求解未知变量的方法，称为显式求解法。
3.4 隐式求解法
显式求解法以公式(3.15)作为起点，该公式可变形为： \[ u^{t}_{i} - u^{t-1}_{i} = \frac{D \Delta t}{{\Delta x}^2} \left( u^{t}_{i+1} - 2u^{t}_{i} + u^{t}_{i-1} \right) \] 令\(\alpha = \frac{D \Delta t}{\Delta x^2}\), \(\beta = -1 - 2\alpha\)，整理以上公式可得：
\[\begin{equation} \begin{aligned} u^{t}_{i} - u^{t-1}_{i} &= \alpha \left( u^{t}_{i+1} - 2u^{t}_{i} + u^{t}_{i-1} \right) \\ -u^{t-1}_{i} &= \alpha u^{t}_{i+1} + (-1- 2\alpha) u^{t}_{i} + \alpha u^{t}_{i-1} \\ -u^{t-1}_{i} &= \alpha u^{t}_{i+1} + \beta u^{t}_{i} + \alpha u^{t}_{i-1} \end{aligned} \end{equation}\]
将以上公式应用于离散点上，
| 点号 \(i\) | 公式 |
|---|---|
| 1 | 边界条件: \(u^{t-1}_{1} = U_{0}\) |
| 2 | \(-u^{t-1}_{2} = \alpha u^{t}_{3} + \beta u^{t}_{2} + \alpha u^{t}_{1}\) |
| 3 | \(-u^{t-1}_{3} = \alpha u^{t}_{4} + \beta u^{t}_{3} + \alpha u^{t}_{2}\) |
| 4 | \(-u^{t-1}_{4} = \alpha u^{t}_{5} + \beta u^{t}_{4} + \alpha u^{t}_{3}\) |
| 5 | \(-u^{t-1}_{5} = \alpha u^{t}_{6} + \beta u^{t}_{5} + \alpha u^{t}_{4}\) |
| … | … |
| i-1 | … |
| i | \(-u^{t-1}_{i} = \alpha u^{t}_{i+1} + \beta u^{t}_{i} + \alpha u^{t}_{i-1}\) |
| i+1 | … |
| … | … |
| n-2 | \(-u^{t-1}_{n-2} = \alpha u^{t}_{n-1} + \beta u^{t}_{n-2} + \alpha u^{t}_{n-3}\) |
| n-1 | \(-u^{t-1}_{n-1} = \alpha u^{t}_{n} + \beta u^{t}_{n-1} + \alpha u^{t}_{n-2}\) |
| n | 边界条件: \(u^{t-1}_{n} = U_{L}\) |
由此我们得到\(n\)个算式，可转换为矩阵形式：
\[\begin{equation} \begin{bmatrix} {\color{red}1} & 0 & 0 & 0 & \dots & 0 & 0 & 0 & 0\\ \alpha & ~\beta~ & \alpha & 0 & \dots & 0 & 0 & 0 & 0\\ 0 & \alpha & ~\beta~ ~& \alpha & \dots & 0 & 0 & 0 & 0\\ \dots &\dots &\dots &\dots &\dots &\dots &\dots &\dots &\dots \\ 0 & 0 & \dots & \alpha & ~\beta~& \alpha & \dots & 0 & 0\\ \dots &\dots &\dots &\dots &\dots &\dots &\dots &\dots &\dots \\ 0 & 0& 0 & 0 & \dots & \alpha~& ~\beta~ & \alpha & 0 \\ 0 & 0& 0 & 0 & \dots & 0 & \alpha & ~\beta~ & \alpha \\ 0 & 0& 0 & 0 & \dots & 0 & 0& 0 &{\color{red}1} \end{bmatrix} \begin{bmatrix} U_{0} \\ u_{2}^{t} \\ u_{3}^{t} \\ u_{4}^{t} \\ \dots \\ u_{i}^{t} \\ \dots \\ u_{n-3}^{t} \\ u_{n-2}^{t} \\ u_{n-1}^{t} \\ U_{L} \end{bmatrix} = - \begin{bmatrix} u_{1}^{t-1} \\ u_{2}^{t-1} \\ u_{3}^{t-1} \\ u_{4}^{t-1} \\ \dots \\ u_{i}^{t-1} \\ \dots \\ u_{n-3}^{t-1} \\ u_{n-2}^{t-1} \\ u_{n-1}^{t-1} \\ u_{n}^{t-1} \end{bmatrix} \end{equation}\]
更简洁的方式，可写为：
\[\begin{equation} \begin{bmatrix} {\color{red}1} & 0 & 0 & 0 & \dots & 0 & 0 & 0 & 0\\ \alpha & ~\beta~ & \alpha & 0 & \dots & 0 & 0 & 0 & 0\\ 0 & \alpha & ~\beta~ ~& \alpha & \dots & 0 & 0 & 0 & 0\\ \dots &\dots &\dots &\dots &\dots &\dots &\dots &\dots &\dots \\ 0 & 0 & \dots & \alpha & ~\beta~& \alpha & \dots & 0 & 0\\ \dots &\dots &\dots &\dots &\dots &\dots &\dots &\dots &\dots \\ 0 & 0& 0 & 0 & \dots & \alpha~& ~\beta~ & \alpha & 0 \\ 0 & 0& 0 & 0 & \dots & 0 & \alpha & ~\beta~ & \alpha \\ 0 & 0& 0 & 0 & \dots & 0 & 0& 0 &{\color{red}1} \end{bmatrix} \begin{bmatrix} U_{0} \\ u_{2} \\ u_{3} \\ u_{4} \\ \dots \\ u_{i} \\ \dots \\ u_{n-3} \\ u_{n-2} \\ u_{n-1} \\ U_{L} \end{bmatrix} ^{t} = - \begin{bmatrix} u_{1} \\ u_{2} \\ u_{3} \\ u_{4} \\ \dots \\ u_{i} \\ \dots \\ u_{n-3} \\ u_{n-2} \\ u_{n-1} \\ u_{n} \end{bmatrix} ^{t-1} \end{equation}\]
一个矩阵\([A]\)乘以下一时刻(\(t\))的变量组成的向量\(x\)等于已知的前一时刻(\(t-1\))的向量\(b\)，求解该方程则可得到\(x\)的值，数学表达为：
\[[A] * x = b\]
通用的求解法为 \[ x = [A]^{-1} * b \]
通过已知变量、未知变量和矩阵组成的公式或函数来求解未知变量的过程，称为隐式求解法。
3.5 编程求解
显式求解法
#' Problem: 1D Heat Transfer
#' governing Eqn: du/dt = k/r/c * (dd u / d x^2)
#' wiki: https://en.wikipedia.org/wiki/Thermal_diffusivity
#' wiki: https://en.wikipedia.org/wiki/Heat_equation
#' BC U0 = 100, UL=50
#' IC uic = 25
#' X = c(0, 1)
#' D = 23 mm2/s = 2.3e-5 m^2/s
#' DX = 0.01 m
#' DT = 10 s
#' Time = 0 to 1e6 s
HT.explicit <- function(
U0=100, UL=50, uic = 25,
X = 1,
DX= 0.1,
DT = 1,
DD = 2.3e-5,
Tmax = 1e5,
epsilon = 1e-4, bc2 = NULL, ignore.cfl = FALSE, plot = TRUE
){
T0 = 0
tt = seq(T0, Tmax, DT)
NT = length(tt)
xx = seq(0, X, DX)
NX = X / DX + 1
alpha = DD * DT / (DX * DX)
beta = 1-2*alpha
CFL = DD * DT / (DX * DX)
print(CFL)
if(!ignore.cfl){
if(CFL >=1 ){
stop()
}
}
#' =========================================
x0 = rep(uic, NX)
#' =========================================
ylim = c(min(x0), max(U0, UL))
xlim=c(0, X)
if(plot){
plot(xx, x0, type='b', col=2, lwd=3, ylim=ylim, xlim=xlim, xlab=xlab, ylab=ylab)
grid()
lines(x=c(1,1) * 0, y=c(min(x0), U0), lwd=2, col=3, type='b')
lines(x=c(1,1) * X, y=c(min(x0), UL), lwd=2, col=3, type='b')
text(x=X/2 , y = uic + diff(ylim)*.051, 'Initial condition', font=2)
text(x=X * 0.05 , y = U0, 'BC 1', font=2)
text(x=X * 0.95 , y = UL, 'BC 2', font=2)
}
#' =========================================
mat = matrix(0, nrow = NX, ncol = NX)
for(i in 1:NX){
for(j in 1:NX){
if(i==j){
mat[i, j] = beta
}
if(i+1 == j | i-1 == j ){
mat[i, j] = alpha
}
}
}
mat[1,]=c(1, rep(0, NX-1))
mat[NX,]=c(rep(0, NX-1), 1)
xm = matrix(NA, nrow=NX, ncol=NT)
vs = cbind(rep(0, NX))
# vs[NX/2] = ss
b=bx = cbind(x0)
for(i in 1:NT){
if(i>1){
bx = mat %*% b + vs * DT
if(any(is.nan(bx))) { break }
if(mean(abs(b-bx)) < epsilon) { break }
}
bx[1] = U0
bx[NX] = UL
xm[, i]=bx
b = bx
}
NT = i
xm=xm[, 1:NT]
# message('CFL value = ', CFL)
# message('Total Timesteps (dt * nt)= ', DT, ' * ', NT)
yy = xm; yy[abs(yy)>1e20] = NA
ret = list('x' = xx,
'time' = tt,
'u' = xm,
'CFL' = CFL,
'DT' = DT,
'NT' = NT,
'xlim' = xlim,
'ylim' = ylim)
return(ret)
}
plot1 <- function(x, nout = 20){
NT = x$NT
id=10^seq(0, log10(x$NT), length.out = nout)
col=colorspace::diverge_hcl(n=length(id)); lty=1
matplot(x=x$x, y=x$u[, id], type='l', ylim=x$ylim, xlim=x$xlim,
xlab=xlab, ylab=ylab, col=col, lty=lty)
legend('topright', paste0('T=', x$time[id]+1), col=col, lty=lty, bg='transparent')
mtext(text = paste('CFL =', x$CFL ), side=3, cex=1.5)
}
plot2 <- function(x){
NT = x$NT
id = c(2, 4, 6, 8); nid=length(id)
lty=1:nid; col=lty
matplot(t(x$u[id, ]), type='l', xlab=xlab, ylab=ylab, col=col, lty=lty); grid()
legend('bottomright',col=col, lty=lty, paste('Node', id))
}隐式求解法
#' Problem: 1D Heat Transfer
#' governing Eqn: du/dt = k/r/c * (dd u / d x^2)
#' wiki: https://en.wikipedia.org/wiki/Thermal_diffusivity
#' wiki: https://en.wikipedia.org/wiki/Heat_equation
#' BC U0 = 100, UL=50
#' IC uic = 25
#' X = c(0, 1)
#' D = 23 mm2/s = 2.3e-5 m^2/s
#' DX = 0.01 m
#' DT = 10 s
#' Time = 0 to 1e6 s
HT.implicit <- function(
U0=100, UL=50, uic = 25,
X = 1,
DX= 0.1,
DT = 1,
DD = 2.3e-5,
Tmax = 1e5,
epsilon = 1e-4, bc2 = NULL, ignore.cfl = FALSE, plot = TRUE
){
T0 = 0
tt = seq(T0, Tmax, DT)
NT = length(tt)
xx = seq(0, X, DX)
NX = X / DX + 1
alpha = -DD * DT / (DX * DX)
beta = 1 + 2 * DD * DT / (DX * DX)
CFL = DD * DT / (DX * DX)
print(CFL)
if(!ignore.cfl){
if(CFL >=1 ){
stop()
}
}
#' =========================================
x0 = rep(uic, NX)
#' =========================================
ylim = c(min(x0), max(U0, UL))
xlim=c(0, X)
if(plot){
plot(xx, x0, type='b', col=2, lwd=3, ylim=ylim, xlim=xlim, xlab=xlab, ylab=ylab)
grid()
lines(x=c(1,1) * 0, y=c(min(x0), U0), lwd=2, col=3, type='b')
lines(x=c(1,1) * X, y=c(min(x0), UL), lwd=2, col=3, type='b')
text(x=X/2 , y = uic + diff(ylim)*.051, 'Initial condition', font=2)
text(x=X * 0.05 , y = U0, 'BC 1', font=2)
text(x=X * 0.95 , y = UL, 'BC 2', font=2)
}
#' =========================================
mat = matrix(0, nrow = NX, ncol = NX)
for(i in 1:NX){
for(j in 1:NX){
if(i==j){
mat[i, j] = beta
}
if(i+1 == j | i-1 == j ){
mat[i, j] = alpha
}
}
}
mat[1,]=c(1, rep(0, NX-1))
mat[NX,]=c(rep(0, NX-1), 1)
xm = matrix(NA, nrow=NX, ncol=NT)
vs = cbind(rep(0, NX))
# vs[NX/2] = ss
b=bx=cbind(x0)
for(i in 1:NT){
if(i>1){
bx = solve(mat, b)
if(any(is.nan(bx))) { break }
if(mean(abs(b-bx)) < epsilon) { break }
}
bx[1] = U0
bx[NX] = UL
xm[, i]=bx
b = bx
}
NT = i
xm=xm[, 1:NT]
# message('CFL value = ', CFL)
# message('Total Timesteps (dt * nt)= ', DT, ' * ', NT)
yy = xm; yy[abs(yy)>1e20] = NA
ret = list('x' = xx,
'time' = tt,
'u' = xm,
'CFL' = CFL,
'DT' = DT,
'NT' = NT,
'xlim' = xlim,
'ylim' = ylim)
return(ret)
}
plot1 <- function(x, nout = 20){
NT = x$NT
id=10^seq(0, log10(x$NT), length.out = nout)
col=colorspace::diverge_hcl(n=length(id)); lty=1
matplot(x=x$x, y=x$u[, id], type='l', ylim=x$ylim, xlim=x$xlim,
xlab=xlab, ylab=ylab, col=col, lty=lty)
legend('topright', paste0('T=', x$time[id]+1), col=col, lty=lty, bg='transparent')
mtext(text = paste('CFL =', x$CFL ), side=3, cex=1.5)
}
plot2 <- function(x){
NT = x$NT
id = c(2, 4, 6, 8); nid=length(id)
lty=1:nid; col=lty
matplot(t(x$u[id, ]), type='l', xlab=xlab, ylab=ylab, col=col, lty=lty); grid()
legend('bottomright',col=col, lty=lty, paste('Node', id))
}3.6 显式与隐式求解法对比
3.6.1 CFL条件

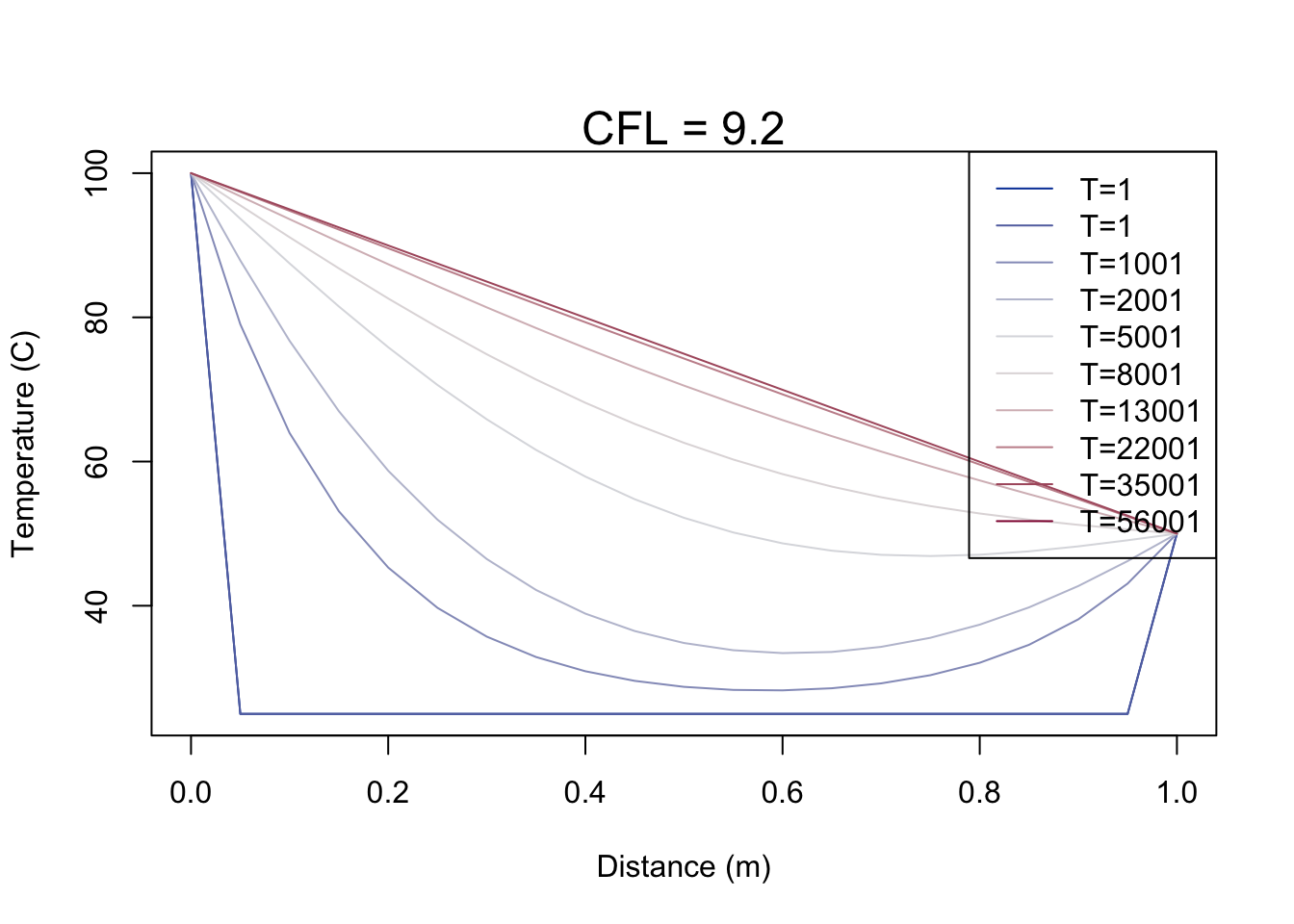

source("Code/ch03/ch3_HeatTransferIm.R")
xlab ='Distance (m)'
ylab = 'Temperature (C)'
x = HT.implicit(DX= 0.05, DT = 1000, U0=100, UL=50, uic = 25, ignore.cfl=TRUE, plot=FALSE)## [1] 9.2
3.6.2 计算效率
source("Code/ch03/ch3_HeatTransferIm.R")
source("Code/ch03/ch3_HeatTransferEx.R")
Tmax = 1e4
t0 = Sys.time()
x=HT.explicit(DX= 0.025, DT = 5, U0=100, UL=50, uic = 25, X = 1, ignore.cfl=FALSE, plot=FALSE, Tmax=Tmax)## [1] 0.184t1 = Sys.time()
tu.ex = t1 - t0
t0 = Sys.time()
x=HT.implicit(DX= 0.025, DT = 5, U0=100, UL=50, uic = 25, X = 1, ignore.cfl=FALSE, plot=FALSE, Tmax=Tmax)## [1] 0.184## Time for implicit =0.0979740619659424## Time for explicit =0.069296121597293.7 二维有限差分

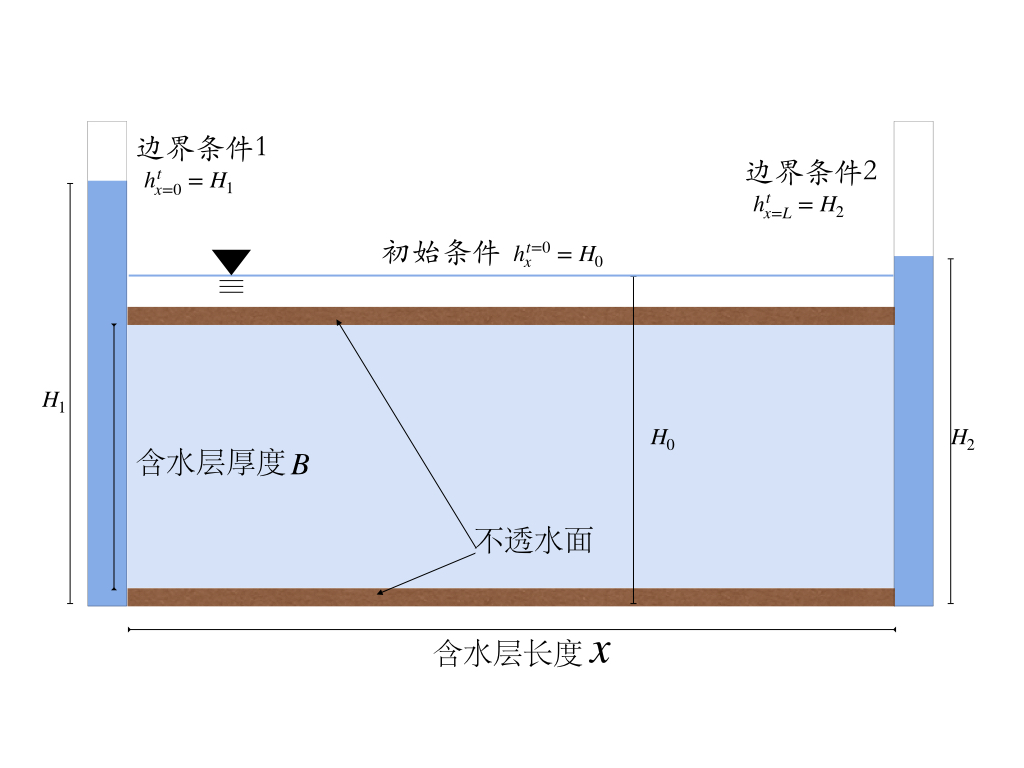

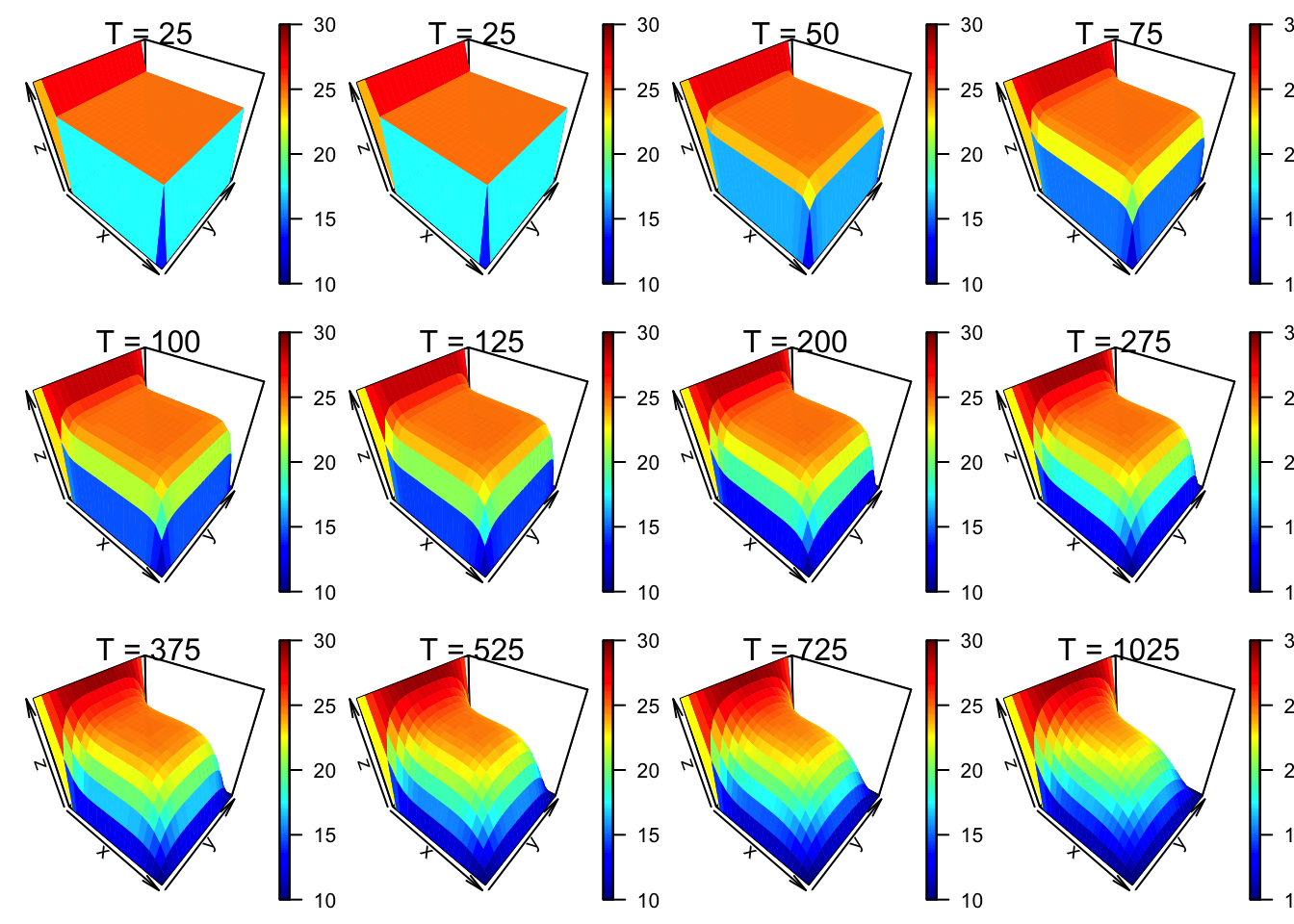

Example 3.2 \[ s \frac{dh}{dt} = k_{x} B * \frac{d^2 h}{d x^2} + k_{y} B * \frac{d^2 h}{d y^2} + s_s \]
令\(D_x = \frac{k_x B}{s}\)和\(D_y = \frac{k_y B}{s}\)。
公式推导：
右边： \[\frac{\partial u}{\partial t} = \frac{u^{t+1}_{i, j} - u^{t}_{i, j} }{ \Delta t}\]
左边：
\[D_x\frac{\partial ^2 u}{\partial x^2} + D_y\frac{\partial ^2 u}{\partial y^2}= D_x\frac{u^{t}_{i+1, j} - 2 u^{t}_{i, j} + u^{t}_{i-1, j} }{ {\Delta x }^2} + D_y\frac{u^{t}_{i, j+1} - 2 u^{t}_{i, j} + u^{t}_{i, j-1} }{ {\Delta y }^2}\]
控制方程离散化后得到： \[ \frac{u^{t+1}_{i, j} - u^{t}_{i, j} }{ \Delta t} = D_x\frac{u^{t}_{i+1, j} - 2 u^{t}_{i, j} + u^{t}_{i-1, j} }{ {\Delta x }^2} + D_y\frac{u^{t}_{i, j+1} - 2 u^{t}_{i, j} + u^{t}_{i, j-1} }{ {\Delta y }^2} \]
\[u^{t+1}_{i, j} - u^{t}_{i, j}= \frac{D_x \Delta t}{ {\Delta x }^2} (u^{t}_{i+1, j} - 2 u^{t}_{i, j} + u^{t}_{i-1, j} ) + \frac{D_x \Delta t}{ {\Delta y }^2} (u^{t}_{i, j+1} - 2 u^{t}_{i, j} + u^{t}_{i, j-1})\]
令\(\alpha = \frac{D_x \Delta t}{ {\Delta x }^2}\), \(\beta = \frac{D_x \Delta t}{ {\Delta y }^2}\), \(\gamma = 1-2\frac{D_x \Delta t}{ {\Delta x }^2} - 2\frac{D_x \Delta t}{ {\Delta y }^2}\)，公式变为：

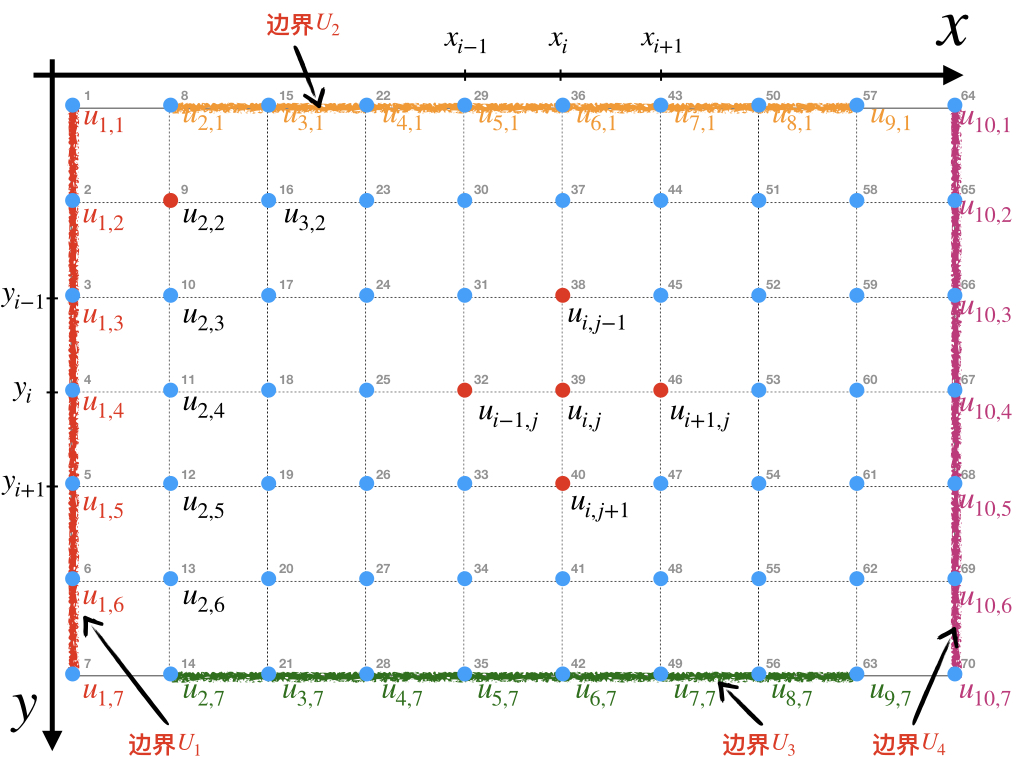

\[ u^{t+1}_{i, j} = \alpha u^{t}_{i+1, j} + \beta u^{t}_{i, j+1} + \gamma u^{t}_{i, j} + \beta u^{t}_{i, j-1} + \alpha u^{t}_{i-1, j} \]
假设\(x\)和\(y\)方向总长为\(L_x\)和\(L_y\)，沿两个方向的离散点数为\(N_x =L_x / \Delta x\), \(N_y =L_y / \Delta y\), \(N = N_x * N_y\)。 矩阵形式可表达为： \[ x = A * b \]
\[x = \begin{bmatrix} \begin{bmatrix} u_{1,1} \\ \dots \\ u_{1, N_y} \end{bmatrix} \\ \begin{bmatrix} u_{2,1} \\\dots \\ u_{2, N_y} \end{bmatrix} \\ \dots \\ u_{i,j} \\ \dots \\ \begin{bmatrix} u_{Nx, 1} \\ \dots\\ u_{N_x, N_y} \end{bmatrix} \end{bmatrix} ^{t}\]
\[A = \begin{bmatrix} \begin{bmatrix} {\color{red}1} & 0 & 0 \\ 0 & {\color{red}1} & 0 \\ 0 & 0 & {\color{red}1} \end{bmatrix} & 0 & 0 & 0 \\ 0 & \begin{bmatrix} {\color{red}1} & 0 & 0 & 0 & 0 & 0 & 0\\ \beta & \dots & \alpha & {\gamma} & \alpha & \dots & \beta \\ 0 & 0 & 0 & 0 &0 & 0 & {\color{red}1} \end{bmatrix} & 0 & 0 \\ 0 & 0 & \begin{bmatrix} {\color{red}1} & 0 & 0 & 0 & 0 & 0 & 0\\ \beta & \dots & \alpha & {\gamma} & \alpha & \dots & \beta \\ 0 & 0 & 0 & 0 &0 & 0 & {\color{red}1} \end{bmatrix} & 0 \\ 0 & 0 & 0 & \begin{bmatrix} {\color{red}1} & 0 & 0 \\ 0 & {\color{red}1} & 0 \\ 0 & 0 & {\color{red}1} \end{bmatrix} \\ \end{bmatrix} \]
\[b= \begin{bmatrix} [U_{1}]_{N_y*1} \\ \begin{bmatrix} U_2 \\ u_{2,1} \\\dots \\ U_3 \end{bmatrix}_{N_y*1} \\ \begin{bmatrix} U_2 \\ u_{i,j} \\\dots \\ U_3 \end{bmatrix}_{N_y*1} \\ [U_{4}]_{N_y*1} \end{bmatrix} ^{t-1}\]
3.7.1 编程求解
显式求解
#' Problem: 1D Confined Aquifer
#' governing Eqn: du/dt = DDx * (dd u / d x^2) + DDy * (dd u / d y^2)
#'
diag.matrix <- function(id = c(-1, 0, 1), x = rep(1, length(id)), n = 3, def.val = 0){
val = matrix(x, ncol=length(id), nrow=1)
mat = matrix(def.val, n, n)
nid = length(id)
for(i in 1:n){
for(j in 1:n){
for(k in 1:nid){
if(i + id[k] == j){
mat[i,j] = val[k]
}
}
}
}
mat
}
toBC <- function(idl, x, val){
nbc = length(idl)
for(i in 1:nbc){
x[idl[[i]]] = val[i]
}
x
}
CA.Explicit <- function( bc1 = c(0, 0, 0,0),
bc2 = NULL,
uic = 25,
Lxy = c(1000, 1000),
Dxy = c(50,50),
DD = rep(23 ,2),
epsilon = 0.001,
DT = 25,
Tmax = 1e5,
ignore.cfl = FALSE, plot = TRUE){
DX=Dxy[1]; DY=Dxy[2];
tt = seq(0, Tmax, DT);
NT = length(tt)
xx = seq(0, Lxy[1], DX); NX = length(xx)
yy = seq(0, Lxy[2], DY); NY = length(yy)
# NX = Lxy[1] / DX + 1; NY = Lxy[2] / DY + 1
N = NX * NY
CFL.x = alpha = DD[1] * DT / (DX * DX)
CFL.y = beta = DD[2] * DT / (DY * DY)
gamma = 1 - 2 * alpha - 2 * beta
message('CFL value = (', CFL.x, '\t', CFL.y, ')')
if(!ignore.cfl){
if(CFL.x >=.5 | CFL.y >=.5){
stop()
}
}
mat = diag.matrix(id = c(-NY, -1, 0, 1, NY), n=N,
x=c(alpha, beta, gamma, beta, alpha), def.val = 0)
dmat = diag.matrix(id=0, x=1, n=N, def.val = 0)
idl = list(1:NY,
1+(1:NX - 1)*(NY),
(1:NX) * NY,
(NX-1)*(NY)+1:NY)
nbc = length(idl)
id.bc = sort(unique(unlist(idl)))
mat[id.bc, ] = dmat[id.bc,]
arr = array(NA, dim=c(NY,NX,NT))
# xm = matrix(NA, nrow=N, ncol=NT)
vs = cbind(rep(0, N))
# bc2=list(id=10, x=0.01)
# vs[bc2$id] = bc2$x
b=bx=cbind(rep(uic, N))
b = toBC(idl = idl, x=b, val=bc1)
for(i in 1:NT){
if(i>1){
bx = mat %*% b + vs * DT
if(any(is.nan(bx))) { break }
if(mean(abs(b-bx)) < epsilon) { break }
}
bx = toBC(idl = idl, x=bx, val=bc1)
arr[, , i] = matrix(bx, nrow = NY, ncol = NX)
b = bx
}
NT = i
arr=arr[,, 1:NT]
# message('Total Timesteps (dt * nt)= ', DT, ' * ', NT)
# yy = arr; yy[abs(yy)>1e20] = NA
ret = list('x' = xx,
'y' = yy,
'z' = arr,
'time' = tt,
'CFL' = c(CFL.x, CFL.y),
'DT' = DT,
'NT' = NT
)
return(ret)
}
plot.3d <- function(x, nr=3, nc=4, clim=NULL){
par(mfrow=c(nr, nc), mar=c(1,1,1,1))
idx = round(10^seq(0, log10(x$NT), length.out = nc*nr))
z=x$z;
z[ is.infinite(abs(z)) ] = NA
if(is.null(clim)){
clim = range(z, na.rm = TRUE)
}
for(i in idx ){
plot3D::persp3D(z=z[, , i], clim=clim,
colvar=z[, , i])
mtext(paste('T =', x$DT * i), side= 3, line=-1)
}
}library(plot3D)
source("Code/ch03/ch3_ConfAq2DIm.R")
x = CA.Explicit(bc1 = c(10, 30,10, 10),
uic = 25,
Lxy = c(1000, 1000),
Dxy = c(50,50),
DD = rep(23 ,2),
epsilon = 0.001,
DT = 25,
Tmax = 1000
)## CFL value = (0.23 0.23)

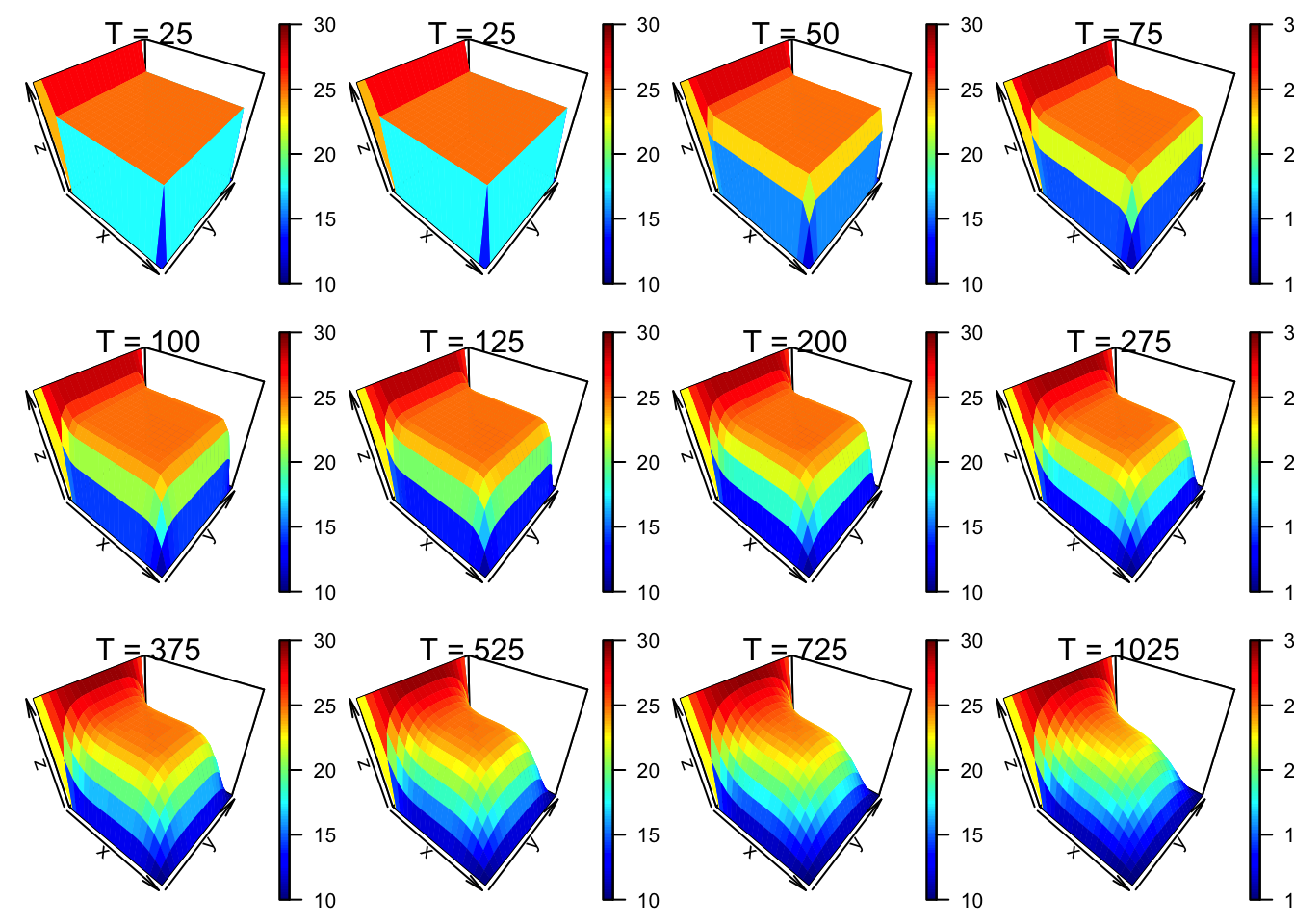

隐式求解
#' Problem: 1D Confined Aquifer
#' governing Eqn: du/dt = DDx * (dd u / d x^2) + DDy * (dd u / d y^2)
#'
diag.matrix <- function(id = c(-1, 0, 1), x = rep(1, length(id)), n = 3, def.val = 0){
val = matrix(x, ncol=length(id), nrow=1)
mat = matrix(def.val, n, n)
nid = length(id)
for(i in 1:n){
for(j in 1:n){
for(k in 1:nid){
if(i + id[k] == j){
mat[i,j] = val[k]
}
}
}
}
mat
}
toBC <- function(idl, x, val){
nbc = length(idl)
for(i in 1:nbc){
x[idl[[i]]] = val[i]
}
x
}
CA.Implicit <- function( bc1 = c(0, 0, 0,0),
bc2 = NULL,
uic = 25,
Lxy = c(1000, 1000),
Dxy = c(50,50),
DD = rep(23 ,2),
epsilon = 0.001,
DT = 25,
Tmax = 1e5,
ignore.cfl = FALSE, plot = TRUE){
DX=Dxy[1]; DY=Dxy[2];
tt = seq(0, Tmax, DT);
NT = length(tt)
xx = seq(0, Lxy[1], DX); NX = length(xx)
yy = seq(0, Lxy[2], DY); NY = length(yy)
# NX = Lxy[1] / DX + 1; NY = Lxy[2] / DY + 1
N = NX * NY
alpha = -DD[1] * DT / (DX * DX)
beta = -DD[2] * DT / (DY * DY)
CFL.x = DD[1] * DT / (DX * DX)
CFL.y = DD[2] * DT / (DY * DY)
gamma = 1 + 2 * DD[1] * DT / (DX * DX) + 2 * DD[2] * DT / (DY * DY)
message('CFL value = (', CFL.x, '\t', CFL.y, ')')
if(!ignore.cfl){
if(CFL.x >=.5 | CFL.y >=.5){
stop()
}
}
#' =========================================
x0 = rep(uic, NX)
mat = diag.matrix(id = c(-NY, -1, 0, 1, NY), n=N,
x=c(alpha, beta, gamma, beta, alpha), def.val = 0)
dmat = diag.matrix(id=0, x=1, n=N, def.val = 0)
idl = list(1:NY,
1+(1:NX - 1)*(NY),
(1:NX) * NY,
(NX-1)*(NY)+1:NY)
nbc = length(idl)
id.bc = sort(unique(unlist(idl)))
mat[id.bc, ] = dmat[id.bc,]
arr = array(NA, dim=c(NY,NX,NT))
vs = cbind(rep(0, N))
b=bx=cbind(rep(uic, N))
b = toBC(idl = idl, x=b, val=bc1)
for(i in 1:NT){
if(i>1){
bx = solve(mat, b + vs * DT)
if(any(is.nan(bx))) { break }
if(mean(abs(b-bx)) < epsilon) { break }
}
bx = toBC(idl = idl, x=bx, val=bc1)
arr[, , i] = matrix(bx, nrow = NY, ncol = NX)
b = bx
}
NT = i
arr=arr[,, 1:NT]
# message('Total Timesteps (dt * nt)= ', DT, ' * ', NT)
# yy = arr; yy[abs(yy)>1e20] = NA
ret = list('x' = xx,
'y' = yy,
'z' = arr,
'time' = tt,
'CFL' = c(CFL.x, CFL.y),
'DT' = DT,
'NT' = NT
)
return(ret)
}
plot.3d <- function(x, nr=3, nc=4, clim=NULL){
par(mfrow=c(nr, nc), mar=c(1,1,1,1))
idx = round(10^seq(0, log10(x$NT), length.out = nc*nr))
z=x$z;
z[ is.infinite(abs(z)) ] = NA
if(is.null(clim)){
clim = range(z, na.rm = TRUE)
}
for(i in idx ){
plot3D::persp3D(z=z[, , i], clim=clim,
colvar=z[, , i])
mtext(paste('T =', x$DT * i), side= 3, line=-1)
}
}library(plot3D)
source("Code/ch03/ch3_ConfAq2DIm.R")
x = CA.Implicit(bc1 = c(10, 30,10, 10),
uic = 25,
Lxy = c(1000, 1000),
Dxy = c(50,50),
DD = rep(23 ,2),
epsilon = 0.001,
DT = 25,
Tmax = 1000
)## CFL value = (0.23 0.23)
对比隐式与显式求解法的时间步长和效率：
rm(list=ls())
library(plot3D)
source("Code/ch03/ch3_ConfAq2DEx.R")
source("Code/ch03/ch3_ConfAq2DIm.R")
Tmax = 1e4
dx = dy = 50
t0 = Sys.time()
x1 = CA.Explicit(Tmax = Tmax, DT = 25,
Lxy = c(1000, 1000), Dxy = c(dx, dy),
ignore.cfl = TRUE)## CFL value = (0.23 0.23)t1 = Sys.time()
tu.ex = t1 - t0
t0 = Sys.time()
x2 = CA.Implicit(Tmax = Tmax, DT = 25,
Lxy = c(1000, 1000), Dxy = c(dx, dy),
ignore.cfl = TRUE)## CFL value = (0.23 0.23)t1 = Sys.time()
tu.im = t1 - t0
df = data.frame( 'Type' = c('Explicit', 'Implicit'),
'NT' = c(x1$NT, x2$NT),
'DT' = c(x1$DT, x2$DT),
'Time' = c(tu.ex, tu.im),
'CFL.X' = c(x1$CFL[1], x2$CFL[1]),
'CFL.Y' = c(x1$CFL[2], x2$CFL[2])
)
print(df)## Type NT DT Time CFL.X CFL.Y
## 1 Explicit 401 25 3.523902 secs 0.23 0.23
## 2 Implicit 401 25 7.618441 secs 0.23 0.23
